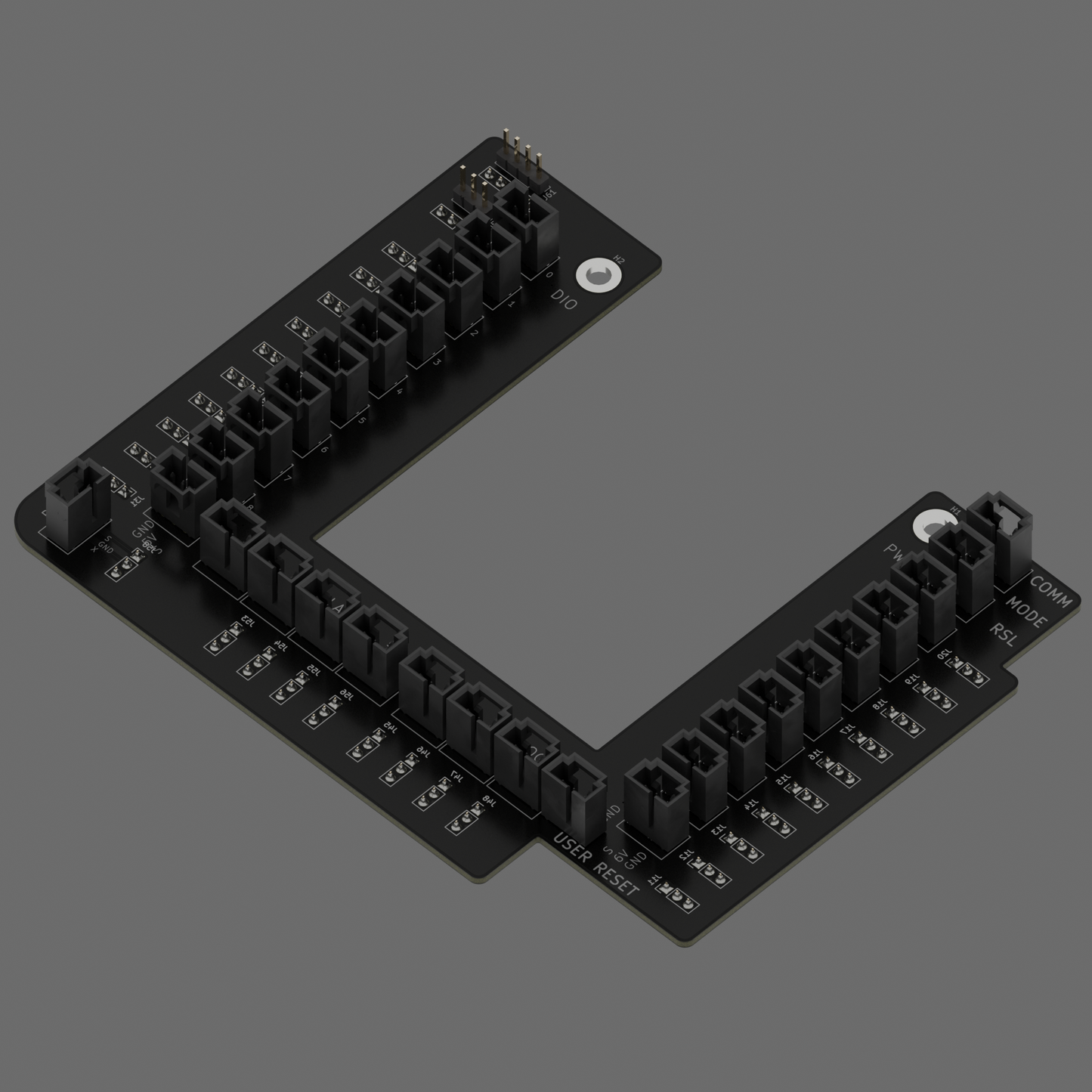

ClickIO Board

The ClickIO board uses Molex SL latching connectors to provide a secure connection for your signal interfaces in a competition environment.  Latching Molex SL connectors are provided for the following interfaces:

• RSL (Robot Safety Light)
• PWM (Pulse Width Modulation)
• Digital Input/Output
• Analog inputs
• Relay

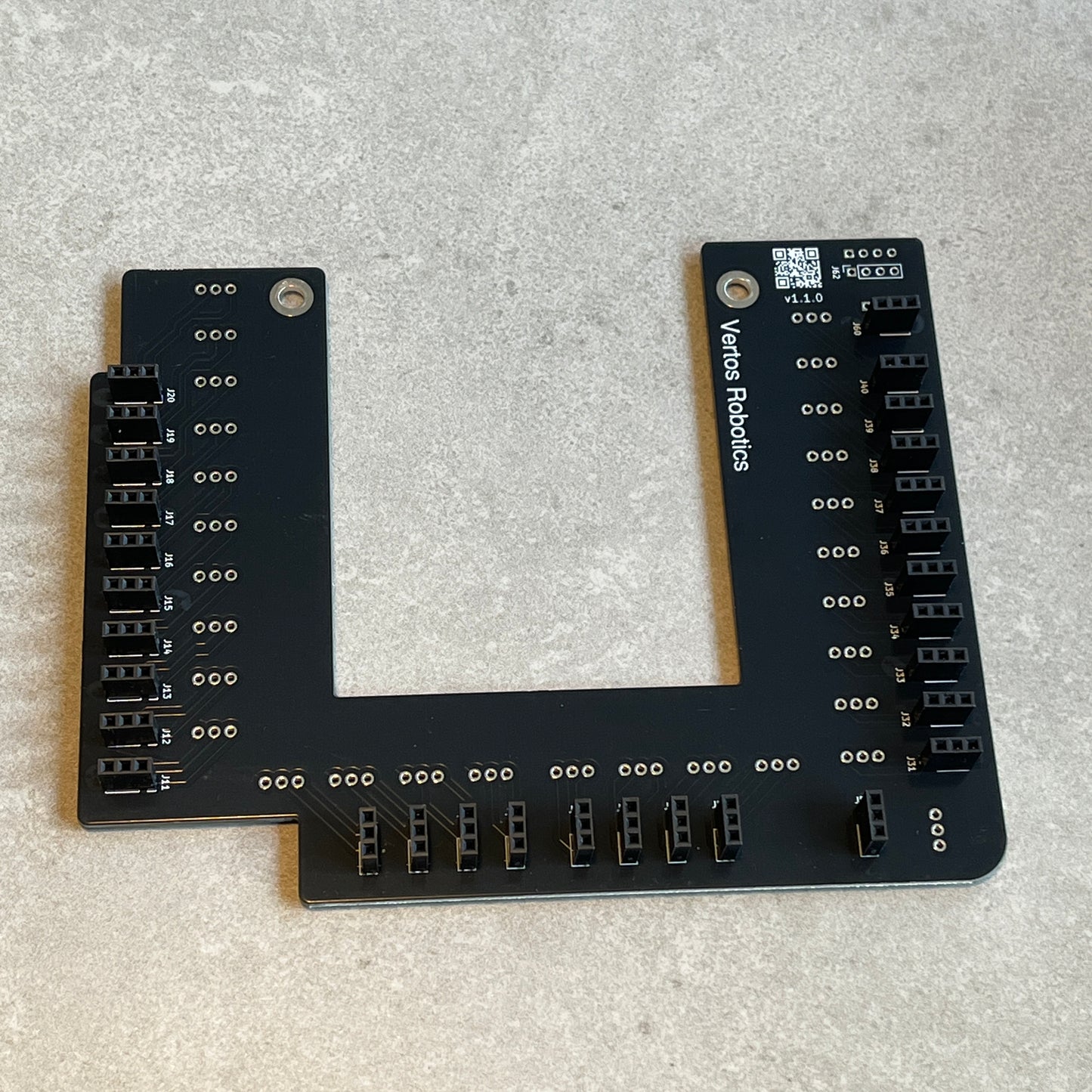

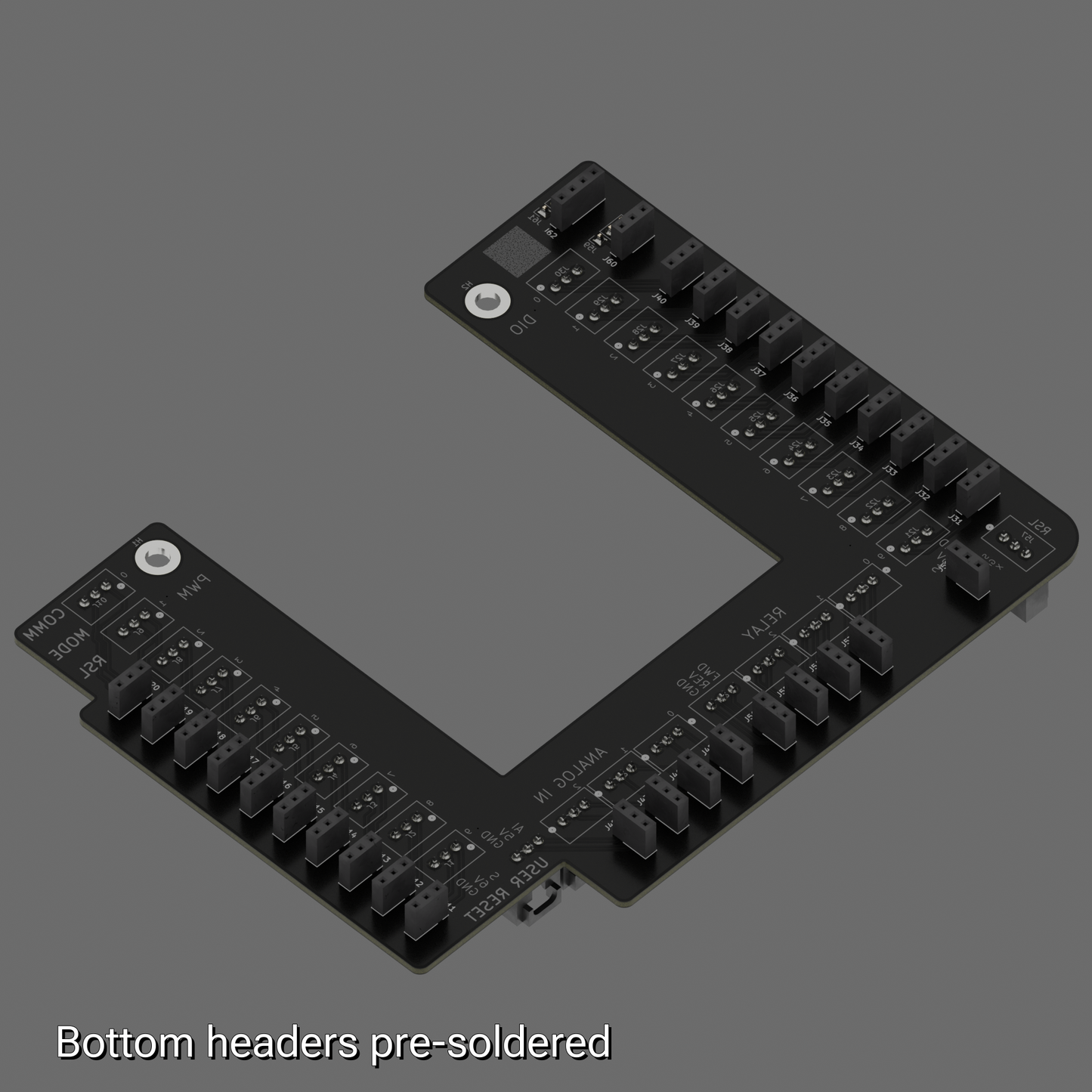

Our board comes with machine assembled female header pins, ensuring perfect alignment with the roboRIO and saving you the time and hassle of hand-soldering.

This board is compatible with the navX board.

Compatible with both the roboRIO 1.0 and 2.0.

Connector Info

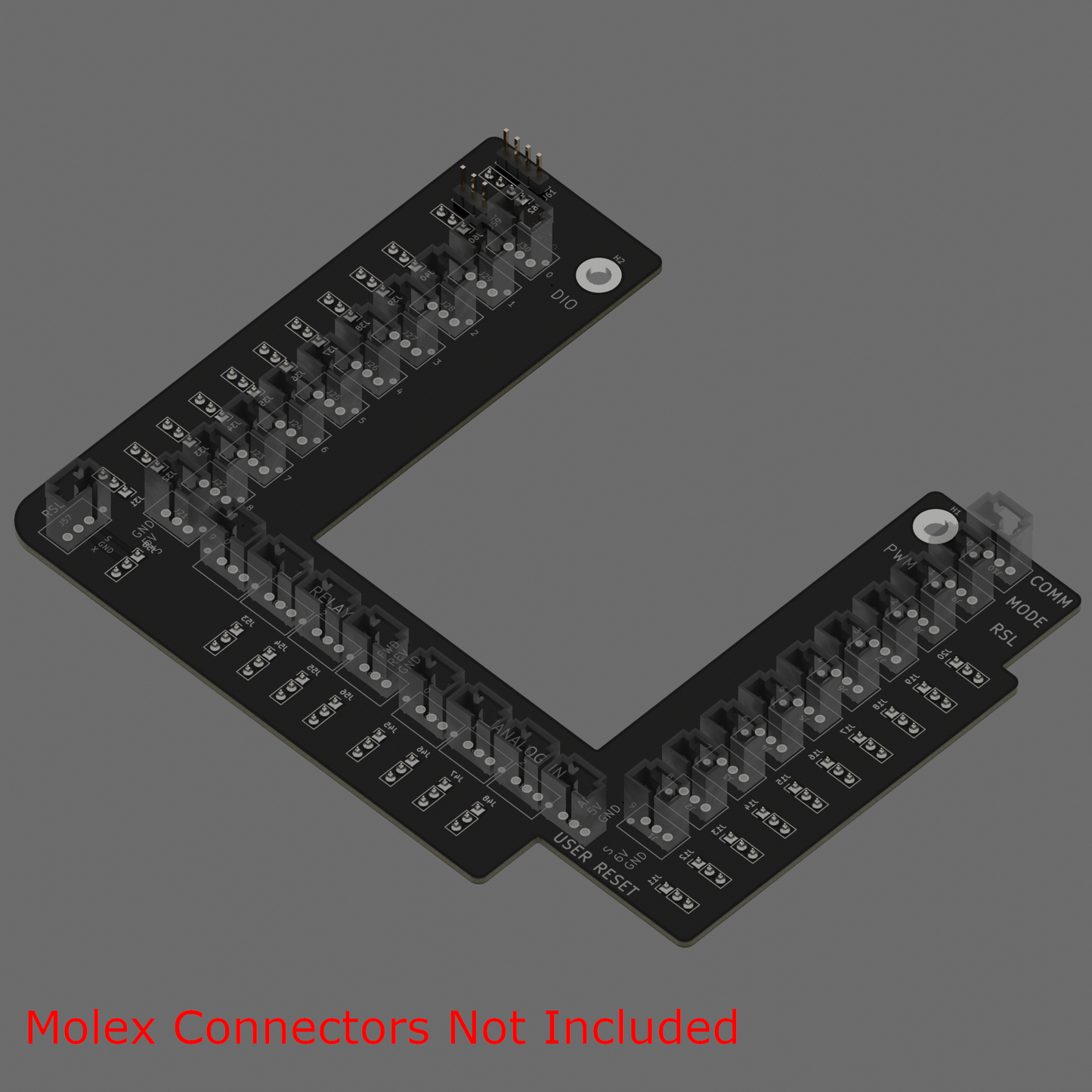

• MOLEX PN 0705430037
• They can be purchased separately through Digikey.

Approximate weight: 70 g (0.16 lb)

Download CAD

Download PDF Drawing

User Manual
